Cabinet Test GUI

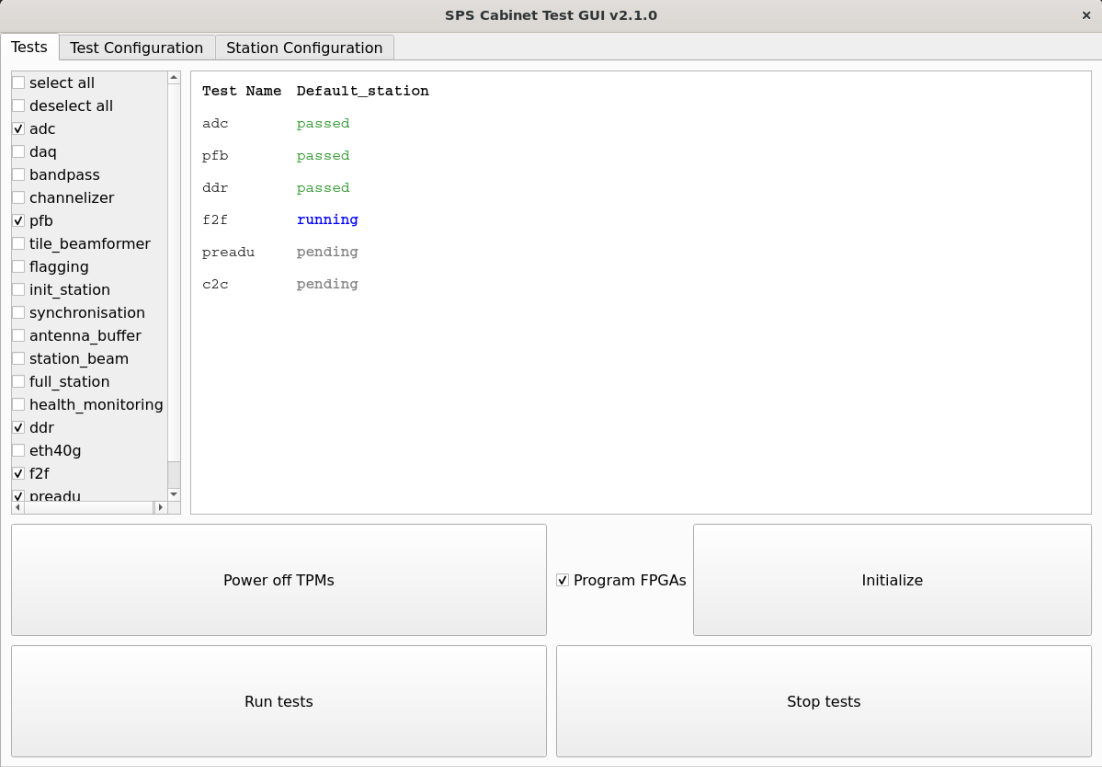

A graphical application can be used to exercise the following functionality on an SPS Cabinet:

  • Power on/off TPMs in the station

  • Initialise a station

  • Select tests to execute from a list

  • Start tests

  • Stop tests

  • Configure test parameters for individual tests (i.e duration)

../_images/gui.png

The GUI is located in the cabinet_test_gui directory. To open the GUI, please ensure the testsuite has been deployed and you are in the correct python virtual environment. See Installation Instructions

And then run the following commands:

cd src/ska_low_sps_testsuite/cabinet_test_gui
python cabinet_test_gui.py

The following arguments are supported:

Options:
  -h, --help           show this help message and exit
  -a, --admin          Disables protections, only use if know what you are doing
  -n, --network        Enables the network monitoring tab of the GUI
  -l LOG_LEVEL, --log_level LOG_LEVEL
                       Specifies the log level [default: STEP]

The Standard Workflow for using the GUI is:
